Productoverview:

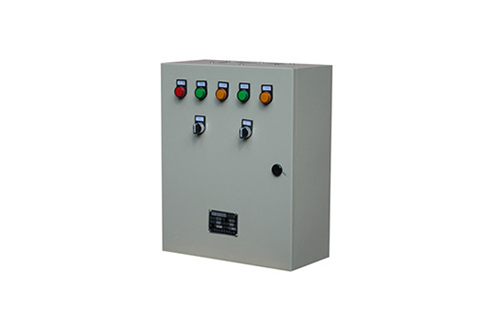

TQK series water pump control cabinet is fully absorb the advanced experience of domestic and international water pump control, after years of production and application, and constantly improve the optimization, carefully designed and made.
The product with overload, short circuit, phase and pump leak protection, motor overheating and leakage protection function and complete state display, and with single pump and pump control mode, a variety of main and standby pump switching mode and all kinds of starting modes. The automatic control can be widely used in various occasions in industrial and agricultural production, water supply, drainage, fire protection, all kinds of buildings and HVAC spraying pipe network pressurization of cold and hot water circulation.
TQK series water pump control cabinet inner quality, beautiful appearance and durable, convenient installation and operation, is safe and reliable partner of various types of pumps.
Two, product features:
1, a wide range of uses: for various occasions, such as living water supply and drainage, fire, spraying, pressurization, air conditioning cooling cycle, industrial control, sewage pump...... There are special types of corresponding. Control the motor power range from 0.75 to 250KW.
2, excellent quality: careful international and domestic famous brand electric element and quality standard cabinet, carefully designed, Seiko production.
3, various functions: from control to a control five main and standby pump combined freely, various starting modes, various forms of control. Automatic fault switching. Can also be designed for you.
Three, technical parameters:
1, QZD direct start control cabinet
Control motor power: 0.75-22KW;
Control voltage: 380V;
Control the number of pumps: 1-4 taiwan.
2, QJX star delta start control cabinet
Control motor power: 15-90KW;
Control voltage: 380V;
Control the number of pumps: 1-4 taiwan.
3, JJI autotransformer start control cabinet
Motor power: 15-220KW;
Control voltage: 380V;
Control the number of pumps: 1-4 taiwan.
4, TPB automatic frequency control cabinet
Motor power: 1.1-250KW;
Control voltage: 380V;
Motor control units: 1-7 taiwan;
The accuracy of pressure control: 1-7.
